搜索结果：125

产品名称及描述	网络协议	频率（MHz）	尺寸（mm）	材质	供电方式	安装方式	定制范围	馈电方式	极化方式	产品合规性	重量(g)	最大效率(%)	驻波比	峰值增益(dBi)	射频同轴连接器	同轴电缆类型	电缆长度（mm）	工作温度	阻抗

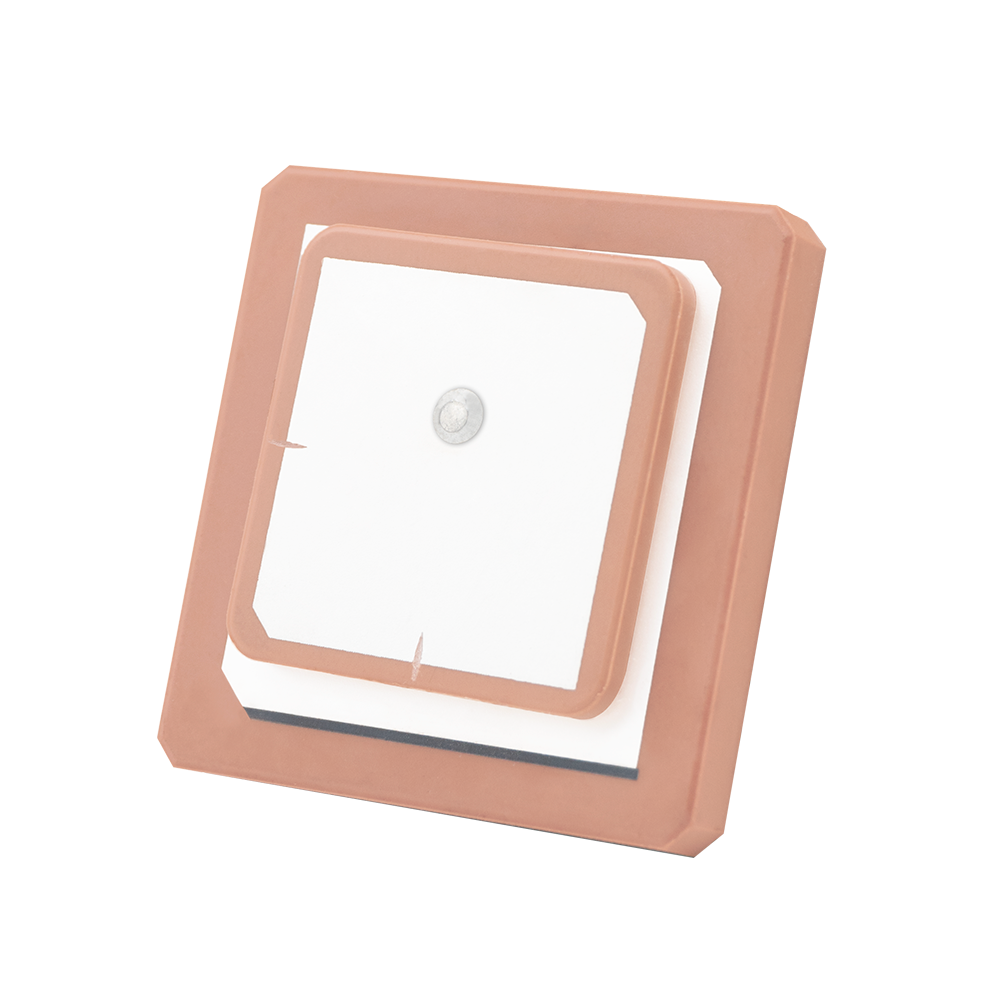

GPS/BDS/GLONASS堆叠式无源陶瓷贴片天线 AIGC043 样品报价	GPS BDS GLONASS	1575.42 ±2MHz 1176.45 ±1MHz	[18x18x2]	[Ceramic]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Frequency]\|[Size]	[Solder]	[RHCP]	[RoHS]	[N/A]	[N/A]	[N/A]	[0.5dBi]	[N-A]	[N/A]	[N/A]	[-40°C-to-85°C]	[50]

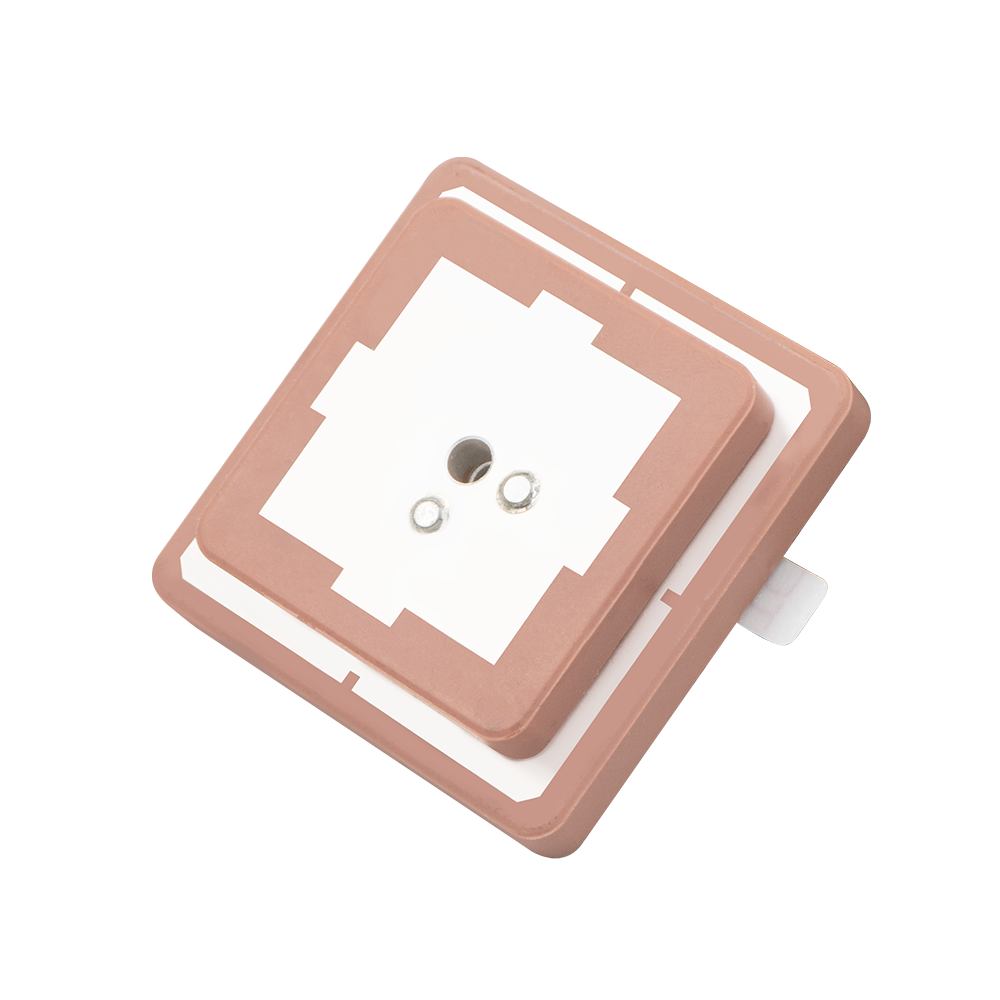

GPS/BDS/GLONASS堆叠式无源陶瓷贴片天线 AIGC044 样品报价	GPS BDS GLONASS	1575.42 ±2MHz 1176.45 ±1MHz	[25x25x4]	[Ceramic]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Frequency]\|[Size]	[Solder]	[RHCP]	[RoHS]	[N/A]	[N/A]	[N/A]	[1dBi]	[N-A]	[N/A]	[N/A]	[-40°C-to-85°C]	[50]

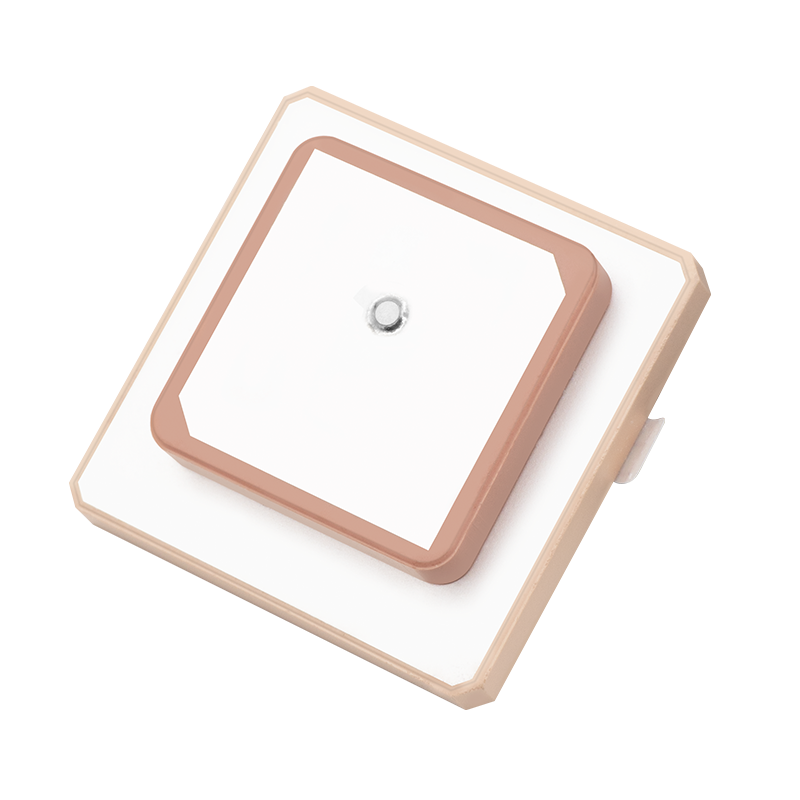

GPS/BDS/GLONASS堆叠式无源陶瓷贴片天线 AIGC045 样品报价	GPS BDS GLONASS	1575.42 ±2MHz 1561±2MHz 1176.45 ±1MHz	[35x35x4]	[Ceramic]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Frequency]\|[Size]	[Solder]	[RHCP]	[RoHS]	[N/A]	[N/A]		[1.5dBi]	[N-A]	[N/A]	[N/A]	[-40°C-to-85°C]	[50]
GPS/BDS/GLONASS堆叠式无源陶瓷贴片天线 AIGC046 样品报价	GPS BDS GLONASS	1575.42 ±2MHz 1561±2MHz 1176.45 ±1MHz 1227.6±1MHz	[35x35x6]	[Ceramic]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Frequency]\|[Size]	[Solder]	[RHCP]	[RoHS]	[N/A]	[N/A]	[N/A]	[3.0dBi]	[N-A]	[N/A]	[N/A]	[-40°C-to-85°C]	[50]
GPS/BDS/GLONASS堆叠式无源陶瓷贴片天线 AIGC047 样品报价	GPS BDS GLONASS	1575.42 ±2MHz 1561±2MHz 1176.45 ±1MHz 1227.6±1MHz	[35x35x4]	[Ceramic]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Frequency]\|[Size]	[Solder]	[RHCP]	[RoHS]	[N/A]	[64.87%]		[2.5dBi]	[N-A]	[N/A]	[N/A]	[-40°C-to-85°C]	[50]
GPS/BDS/GLONASS堆叠式无源陶瓷贴片天线 AIGC048 样品报价	GPS BDS GLONASS	1575.42 ±2MHz 1561±2MHz 1176.45 ±1MHz 1227.6±1MHz	[35x35x6]	[Ceramic]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Frequency]\|[Size]	[Solder]	[RHCP]	[RoHS]	[N/A]	[N/A]		[3.0dBi]	[N-A]	[N/A]	[N/A]	[-40°C-to-85°C]	[50]
2.4GHz Wi-Fi 蓝牙定向陶瓷贴片嵌入式天线 AIWC001 样品报价	2.4G WiFi Bluetooth ISM Zigbee	2400-2500MHz					[logo]	[I-PEX]		[RoHS]\|[Reach]	[10]	[66.16%]	[3.5:1]			[RF-0.81]	[100]		[50]
