快速选型

内置天线

我们的嵌入式产品组合包括FPC天线、GNSS天线、SMD天线等。

请注意，如果您需要标准天线上的特定连接器或电缆长度，可以根据您的特定要求进行定制。
内置（或嵌入式）天线设计巧妙，与设备的美学完美融合。它们隐藏在光滑的外壳和不引人注目的设计之下，在保持设备外形的同时提供卓越的无线性能。

总共：116 搜索结果

网络协议

NFC

4G / 5G / 5G NR

UWB

WIFI/Bluetooth/Zigbee/WIFI7/AOA/ISM

LoRa/LPWAN/NB-IoT/RFID/Sigfox/UHF

GNSS-GPS/BeiDou/GLONASS/GALILEO

ISM / LoRa 450

C-V2X

IRIDIUM
频率（MHz）

13.56

433 / 470~510

617~2600/3300~5000/24.25~52.6GHz

868 / 915 / 860~960

2.4GHz / 5GHz / 6GHz

3.1~10.6 GHz

L1 + L2 + L5 + B1 + B3 + G1

L1/B1C

L1/B1C + B1

L1/B1C + B1 + G1

L1/B1C + L5/B2a

L1/B1C + L2

L1 + B1 + G3

B3
尺寸（mm）

3.1x1.6x0.6

3.2x1.6x1.2

3.35x1.75x1.2

Φ4.6x22.22

5 x 2 x 1

Φ5 x 24.6

Φ5.5x32

Ø5.6 x 37.12

Φ5.6x36.55

Φ5.6x30.6

Φ5.6x30.29

Φ5.6x31.92

8.0 x 3.0 x 1.0

10x10x4

12.0 x 10.46 x 3

12 x 12 x 4

14.5 x 5.6 x 4.3

15.0 x 15.0 x 4.8

15x15x6.2

16.5x21.0x0.2

17.4x37.3x0.2

17.8 x 8.0 x 6.0

18 x 18 x 2

18 x 18 x 4

18x18x7.3

18.2 x 21.8 x 0.2

20x11x6

20x11x8

20 x 20 x 4

22x22x7.3

23x3.5x1.6

25x11

25x25x0.16

25x25x2

25 x 25 x 4

25 x 25 x 6

25 x 25 x 7

26 x 14.78 x 4.5

26x14.78x4.5

28.8x18.1x0.2

29 x 6

29 x 6 x 0.2

30x20

30x8.5x6.5

30.2x18.3x0.2

30.0x25.2x5.5

34 x 34 x 1

35 x 35 x 4

35 x 35 x6

35.2x8.5x0.8

37.0 x 15.38 x 0.2

37.3 x 21.8 x 0.2

37.4 x 17.5 x 0.2

Φ37.6×0.73

37.7 x 17.9 x 0.2

38 x 38 x 4

38 x 38 x 6

38.62x36.37

40 x 8 x 0.2

40 x 7 x 0.2

40 x 15 x 0.2

40 x 6 x 0.2

42.0 x 19.9 x 0.2

42.2 x 26.5 x 0.5

45 x 15 x 0.8

47 x 14.5 x 0.2

47.1×9.0

48.6 x 8.0 x 3.2

49.5x49.5x8

50.85 x 8.5 x 0.2

55.5 x 13.4 x 0.5

57.5x60x1.6

60 x 45 x 0.25

60x45x0.4

60.1x25.6x0.6

60.8 x 50 x 0.35

72.6x7.4

74.86x36.1

75 x 75 x 9.2

75.8 x 13.75

79.4x21x0.2

98.32x17.2

106.2 x 17.2 x 0.8

117.3 x 10 x 0.8

150x50x1.6

155x60

-
材质

陶瓷

金属

FPC

PCB

HPM
供电方式

无源

有源 3.3V（＜10mA）

有源 3.3V（10mA-30mA）

有源 3.3V（＞30mA）

N/A

-
安装方式

螺丝安装

胶粘安装

焊接安装

SMD
定制范围

logo

外包装

电缆

连接器

频率

尺寸
馈电方式

焊接

SMD

弹脚/pogopin

I-PEX

SMA

Molex接口

PH1.25 2P

FPC集成直插式

-
极化方式

线性的

右旋圆极化
产品合规性

RoHS

Reach
重量(g)

0.1

0.12

0.2

0.3

0.35

0.4

0.43

0.5

0.55

0.6

0.7

0.75

0.8

0.9

1

1.1

1.3

1.8

2.1

2.3

2.63

3

3.1

5.7

5.8

6

7.2

8.1

10

11.1

12.2

27.1

27.6

30

34.6

N/A

-
最大效率(%)

21.25%

23.4%

24.78%

32.93%

35.7%

36%

37.88%

44.02%

45.37%

46.57%

46.72%

47.06%

47.13%

48.19%

49.22%

49.84%

51.25%

51.84%

52.14%

52.8%

53.83%

55%

55.05%

56.02%

57.89%

59.36%

59.96%

61.03%

61.29%

61.64%

62.09%

63.5%

64.56%

64.87%

65.09%

66.16%

67.27%

67.87%

68.26%

68.56%

68.7%

69.36%

70.6%

71.96%

72%

75.02%

75.97%

76.02%

77.29%

77.58%

78.19%

78.9%

79.96%

80.59%

81.87%

82.17%

82.77%

84.18%

84.25%

84.63%

84.71%

85%

85.03%

88.43%

91.39%

92.17%

95.43%

98.09%

99%

N/A

-
驻波比

1.21:1

1.22:1

1.69:1

＜1.5

1.5:1

＜1.8

1.80:1

1.96:1

＜2

＜2.5

2.0:1

2.2:1

2.29:1

2.32:1

2.49:1

2.5:1

2.53:1

＜3.5

3.0:1

3.5:1

3.69:1

3.8:1

4.0:1

4.09:1

4.12:1

5.0:1

5.5:1

6.9:1

9:01

9.0:1

10.0:1

25:1

14.0:1

-
峰值增益(dBi)

34.9dBi

31.34dBi

27.88dBi

23.4dBi

6.11 dBi

5.88dBi

5.64 dBi

5.46dBi

5.22dBi

5.16dBi

5.12dBi

4.98dBi

4.82dBi

4.79dBi

4.62 dBi

4.50 dBi

4.3dBi

4.24dBi

4.20dBi

4.17dBi

4.12dBi

4dBi

3.99dBi

3.83 dBi

3.77dBi

3.74dBi

3.60dBi

3.43dBi

3.4 dBi

3.39dBi

3.3dBi

3.25dBi

3.22dBi

3.16dBi

3.09 dBi

3.01 dBi

3.0dBi

2.82dBi

2.71dBi

2.5dBi

2.48 dBi

2.41dBi

2.4 dBi

2.36dBi

2.34dBi

2.24dBi

2dBi

1.89dBi

1.81dBi

1.77dBi

1.65 dBi

1.61 dBi

1.6dBi

1.5dBi

1.4dBi

1.28dBi

1.16dBi

1 dBi

0.79dBi

0.87 dBi

0.67 dBi

0.6dBi

0.5dBi

0dBi

-0.2dBi

-0.43dBi

-0.55dBi

-0.92dBi

-1.54dBi

-2.58dBi

-2.7dBi

-2.7dBi

-3.3dBi

-4.31dBi

-7.9dBi

-8.71dBi

-10.26dBi

-11.38dBi

-19.01dBi

-19.21dBi

N/A

-
射频同轴连接器

IPEX 1

IPEX 3

IPEX 4

PH1.25 2P

SMA母头内孔

SMA母头内针

SMA公头内孔

SMA公头内针

N/A

-
同轴电缆类型

RG-1.13

RG-1.37

RG-174

RG-58

RF-0.81

RG-178

RG-316

LMR-195

N/A

-
电缆长度（mm）

40

47

50

51.5

60

65

70

75

80

82

90

95

100

110

120

127

130

145

146

150

160

170

173

196

200

N/A

-
工作温度

-40°C to +85°C
阻抗

50

应用筛选条件重置筛选

116 搜索结果

产品名称及描述	网络协议	频率（MHz）	尺寸（mm）	材质	供电方式	安装方式	定制范围	馈电方式	极化方式	产品合规性	重量(g)	最大效率(%)	驻波比	峰值增益(dBi)	射频同轴连接器	同轴电缆类型	电缆长度（mm）	工作温度	阻抗
2.4G WIFI ZigBee 蓝牙长款芯片天线 ADWH002 样品报价查看产品	2.4G WIFI Bluetooth Zigbee	2450±50MHz	[5x2x1]	[HPM]	[Passive]	[SMD]	[logo]\|[Packaging]\|[Frequency]\|[Size]	[SMD]	[Linear]	[RoHS]	[N/A]	[49.22%]	[＜2]	[0.67dBi]	[N-A]	[N/A]	[N/A]	[-40°C-to-85°C]	[50]

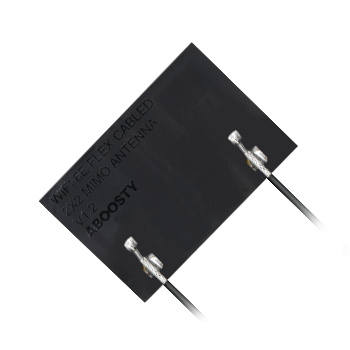

WiFi 6E 2x2 MIMO 双频贴片天线 30x20mm AIWF028 样品报价查看产品	Wi-Fi 6E	2400-2500MHz 5100-7125MHz	[25x11]	[FPC]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Cable]\|[Connector]\|[Size]	[I-PEX]	[Linear]	[RoHS]\|[Reach]	[0.4]	[78.19%]	[3.0:1]	[3.01dBi]	[IPEX-1]	[RG-1.13]	[100]	[-40°C-to-85°C]	[50]
超宽频5G高增益FPC天线 AICF005 样品报价查看产品	4G LTE 5G NR Wi-Fi 6E/7	617-960MHz 1427-6000MHz	[98.32x17.2]	[FPC]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Cable]\|[Connector]\|[Frequency]\|[Size]	[I-PEX]	[Linear]	[RoHS]	[0.9]	[82.17%]	[2.2:1]	[4.17dBi]	[IPEX-1]	[RG-1.13]	[100]	[-40°C-to-85°C]	[50]
全频段4G高增益FPC天线 79.4x21x0.2mm AICF004 样品报价查看产品	4G LTE 5G NR	824-960MHz 1710-2690MHz	[79.4x21x0.2]	[FPC]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Cable]\|[Connector]\|[Frequency]\|[Size]	[I-PEX]	[Linear]	[RoHS]	[0.7]	[68.7%]	[2.5:1]\|[5.0:1]	[3.60dBi]	[IPEX-1]	[RG-1.13]	[60]	[-40°C-to-85°C]	[50]
WiFi 6E 2x2 MIMO 双频贴片天线30x20mm AIWF027 样品报价查看产品	2.4G & 5G WIFI ISM	2400-2500MHz 5100-5900MHz		[FPC]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Cable]\|[Connector]\|[Frequency]\|[Size]	[I-PEX]	[Linear]	[RoHS]\|[Reach]	[0.8]		[2.2:1]		[IPEX-1]	[RG-1.13]	[100]	[-40°C-to-85°C]	[50]
2.4G /5G WiFi 胶粘式嵌入式 FPC 天线 AIWF025 样品报价查看产品	2.4G & 5G WIFI ISM	2400-2500MHz 5100-5900MHz	[37.4x17.5x0.2]	[FPC]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Cable]\|[Connector]\|[Size]	[I-PEX]	[Linear]	[RoHS]\|[Reach]	[0.5]	[56.02%]	[2.5:1]	[5.12dBi]	[IPEX-1]	[RG-1.13]	[95]	[-40°C-to-85°C]	[50]
2.4G WiFi 胶粘式嵌入式FPC天线 29 x 6 mm AIWF020 样品报价查看产品	2.4G WIFI ISM Bluetooth Zigbee	2400-2500MHz	[29x6x0.2]	[FPC]	[N/A]	[Glue]	[logo]\|[Packaging]\|[Cable]\|[Connector]\|[Size]	[I-PEX]	[Linear]	[RoHS]\|[Reach]	[N/A]	[23.4%]	[3.0:1]	[-1.54dBi]	[IPEX-3]	[RF-0.81]	[40]	[-40°C-to-85°C]	[50]
