搜索结果：125

产品名称及描述	网络协议	频率（MHz）	尺寸（mm）	材质	供电方式	安装方式	定制范围	馈电方式	极化方式	产品合规性	重量(g)	最大效率(%)	驻波比	峰值增益(dBi)	射频同轴连接器	同轴电缆类型	电缆长度（mm）	工作温度	阻抗

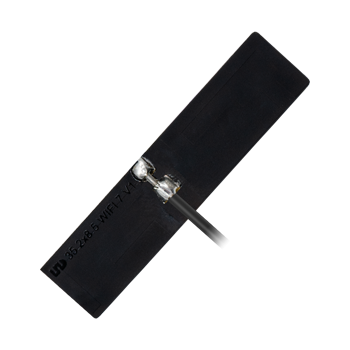

WIFI 7 双频FPC天线 \| 35.2x8.5x0.2mm IPEX1连接器 AIWF030 样品报价	Wi-Fi 7 Wi-Fi 6E/6 Zigbee Bluetooth	2400-7120MHz	[35.2x8.5x0.8]	[FPC]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Cable]\|[Connector]\|[Size]	[I-PEX]	[Linear]	[RoHS]\|[Reach]	[0.5]	[91.39%]	[2.0:1]	[4.79dBi]	[IPEX-1]	[RG-1.13]	[80]	[-40°C-to-85°C]	[50]

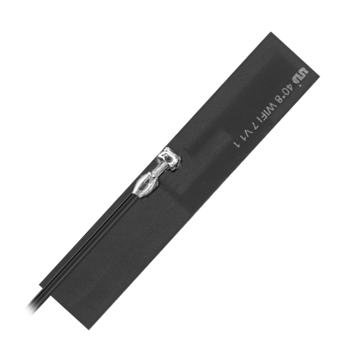

WIFI 7 双频FPC天线 40x8x0.2mm超薄设计 IPEX4 AIWF029 样品报价	Wi-Fi 7 Zigbee ISM Bluetooth	2400-2500MHz 4900-7200MHz	[40x8x0.2]	[FPC]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Cable]\|[Connector]\|[Size]	[I-PEX]	[Linear]	[RoHS]\|[Reach]	[0.5]		[2.2:1]	[5.46dBi]	[IPEX-4]	[RG-1.13]	[100]	[-40°C-to-85°C]	[50]
LTE/4G/5G/BT嵌入式FPC天线40x15mm AICF003 样品报价	2G/3G LTE Bluetooth 5G NR LoRa/Sigfox LPWAN NB-IoT 4G LTE UHF	698-960MHz 1710-2170MHz	[40x15x0.2]	[FPC]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Cable]\|[Connector]\|[Frequency]\|[Size]	[I-PEX]	[Linear]	[RoHS]\|[Reach]	[0.6]	[32.93%]	[10.0:1]	[1.61dBi]	[IPEX-1]	[RG-1.13]	[100]	[-40°C-to-85°C]	[50]
WiFi 6E 2x2 MIMO 双频贴片天线 30x20mm AIWF028 样品报价	Wi-Fi 6E	2400-2500MHz 5100-7125MHz	[25x11]	[FPC]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Cable]\|[Connector]\|[Size]	[I-PEX]	[Linear]	[RoHS]\|[Reach]	[0.4]	[78.19%]	[3.0:1]	[3.01dBi]	[IPEX-1]	[RG-1.13]	[100]	[-40°C-to-85°C]	[50]
超宽频5G高增益FPC天线 AICF005 样品报价	4G LTE 5G NR Wi-Fi 6E/7	617-960MHz 1427-6000MHz	[98.32x17.2]	[FPC]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Cable]\|[Connector]\|[Frequency]\|[Size]	[I-PEX]	[Linear]	[RoHS]	[0.9]	[82.17%]	[2.2:1]	[4.17dBi]	[IPEX-1]	[RG-1.13]	[100]	[-40°C-to-85°C]	[50]
全频段4G高增益FPC天线 79.4x21x0.2mm AICF004 样品报价	4G LTE 5G NR	824-960MHz 1710-2690MHz	[79.4x21x0.2]	[FPC]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Cable]\|[Connector]\|[Frequency]\|[Size]	[I-PEX]	[Linear]	[RoHS]	[0.7]	[68.7%]	[2.5:1]\|[5.0:1]	[3.60dBi]	[IPEX-1]	[RG-1.13]	[60]	[-40°C-to-85°C]	[50]
WiFi 6E 2x2 MIMO 双频贴片天线30x20mm AIWF027 样品报价	2.4G & 5G WIFI ISM	2400-2500MHz 5100-5900MHz		[FPC]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Cable]\|[Connector]\|[Frequency]\|[Size]	[I-PEX]	[Linear]	[RoHS]\|[Reach]	[0.8]		[2.2:1]		[IPEX-1]	[RG-1.13]	[100]	[-40°C-to-85°C]	[50]
