搜索结果：125

产品名称及描述	网络协议	频率（MHz）	尺寸（mm）	材质	供电方式	安装方式	定制范围	馈电方式	极化方式	产品合规性	重量(g)	最大效率(%)	驻波比	峰值增益(dBi)	射频同轴连接器	同轴电缆类型	电缆长度（mm）	工作温度	阻抗
2.0G-7.0G UWB定向PCB天线 AEUP001 样品报价	UWB	2000-7000MHz	[57.5x60x1.6]	[PCB]	[Passive]	[Screw]	[logo]\|[Packaging]\|[Cable]\|[Connector]\|[Frequency]\|[Size]	[SMA]	[Linear]	[RoHS]\|[Reach]	[11.1]	[98.09%]	[3.0:1]	[5.88dBi]	[N-A]	[N/A]	[N/A]	[-40°C-to-85°C]	[50]
粘性安装 868-915 MHz LoRa/LPWA 偶极子嵌入式 PCB 天线 AILP001 样品报价	LoRa/Sigfox LPWAN UHF	860-930MHz	[117.3x10x0.8]	[PCB]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Cable]\|[Connector]\|[Frequency]\|[Size]	[I-PEX]	[Linear]	[RoHS]\|[Reach]	[N/A]	[85%]	[3.0:1]	[1.81dBi]	[IPEX-1]	[RG-1.13]	[130]	[-40°C-to-85°C]	[50]
13.56 MHz充电站嵌入式NFC天线 AINF002 样品报价	NFC	13.56 MHz	[60x45x0.25]	[FPC]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Cable]\|[Connector]\|[Size]	[PH1.25-2P]	[Linear]	[RoHS]\|[Reach]	[0.9]	[-]	[-]	[-]	[PH1.25-2P]	[-]	[-]	[-40°C-to-85°C]	[50]
915MHz 内置弹簧天线 AILM002 样品报价	LoRa/Sigfox , UHF	895-935MHz	[72.6x7.4]	[Metal]	[Passive]	[Solder]	[logo]\|[Packaging]\|[Frequency]\|[Size]	[N/A]	[Linear]	[RoHS]	[0.8]	[51.84%]	[N/A]	[0.79dBi]	[N-A]	[N/A]	[N/A]		[50]
3.1-8G UWB嵌入式FPC天线 37.7*17.9mm AIUF001 样品报价	UWB	3100-8000MHz	[37.7x17.9x0.2]	[FPC]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Cable]\|[Connector]	[I-PEX]	[Linear]	[RoHS]\|[Reach]	[0.6]	[76.02%]	[3.0:1]	[3.43dBi]	[IPEX-1]	[RG-1.13]	[100]	[-40°C-to-85°C]	[50]
5.0G-6.0GUWB定向嵌入式FPC天线 AIUF002 样品报价	UWB	5000-6000MHz	[55.5x13.4x0.5]	[FPC]	[Passive]	[Glue]	[logo]\|[Packaging]\|[Cable]\|[Connector]\|[Frequency]\|[Size]	[I-PEX]	[Linear]	[RoHS]\|[Reach]	[0.7]	[21.25%]	[3.0:1]	[1.6dBi]	[IPEX-1]	[RG-1.13]	[100]	[-40°C-to-85°C]	[50]

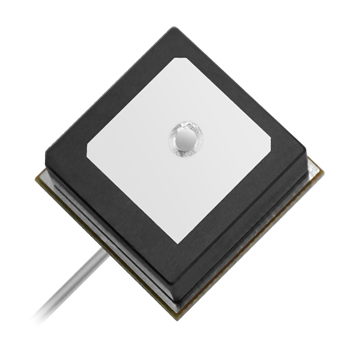

超微型GNSS陶瓷贴片天线 \| 12x12x4mm \| 支持GPS/GLONASS \| 专为极小空间设计 AlGC009 样品报价	GPS GLONASS	1572-1578MHz	[12x12x4]	[Ceramic]	[Passive]	[Glue]	[logo]\|[Packaging]	[Solder]	[RHCP]	[RoHS]\|[Reach]	[2.9]	[28.97%]	[2.0:1]	[-2dBi]	[-]	[-]	[-]	[-40°C-to-85°C]	[50]
